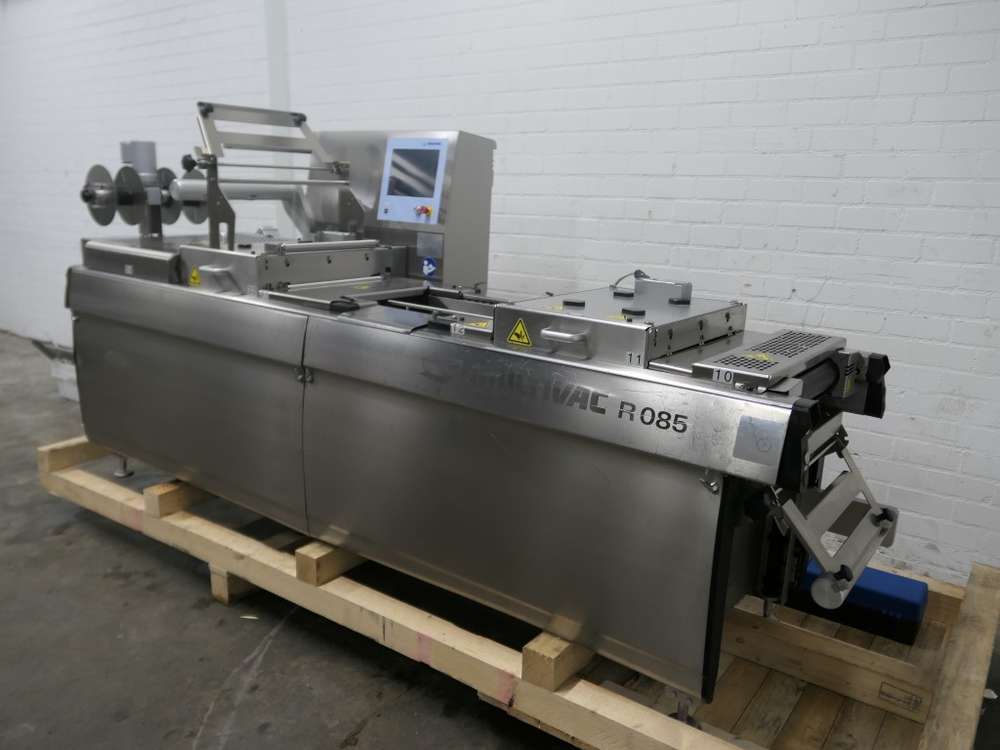

Thermoformer Multivac R 085 – used
Machine 2015 release
Description
Design features:
– Stainless steel frame;
— Electrical protection level IP-65;
– Siemens controller for machine control;
— Safety standards in accordance with EU requirements;
– Easy access to the internal components of the machine.
The Multivac R 085 control system is easy to use – the machine is equipped with a new control panel with a touch screen in Russian, which displays:
– Memory for the product;
– Choice of operating mode;
– Working hours;
— Cycle counter;
– Error messages;
– Speed control.
Ease of operation and maintenance:
— Quick and easy change of formats;
– All nodes are easily accessible thanks to removable side panels.
Technical data:
High performance vacuum pump from Multivac MPR150, 106 m³/hr;
Vacuum/gas function MAP
Number of cycles: up to 8 per minute;
Power: 8 kW;
Year of release: 2015;
Dimensions: 2875 x 970 x 1650
Film width: 420 mm;
Machine pitch: 240mm
Works with soft film;
Formats : 3 format 1.1 (222 x 376 mm) format 1.2 (182 x 180.5 mm) format 1.3 (222 x 115 mm).
